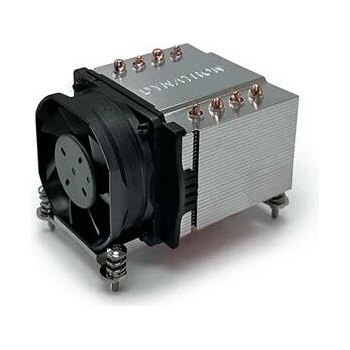

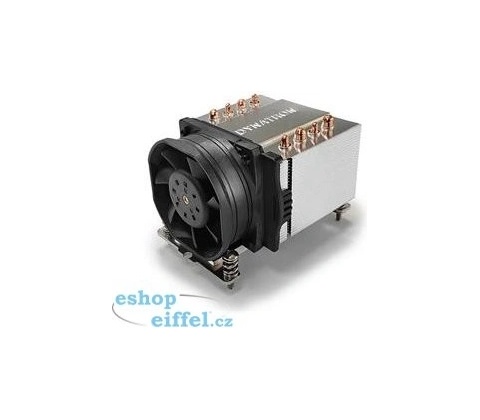

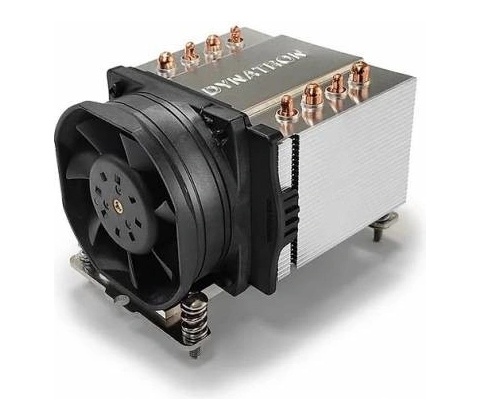

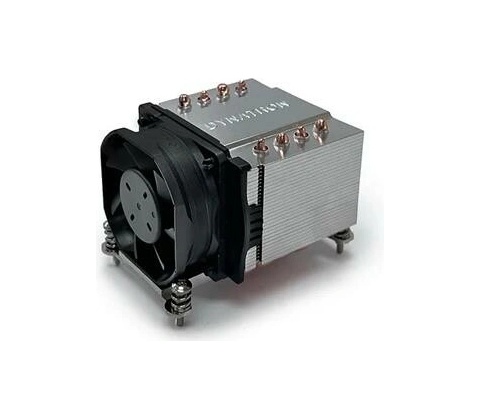

Dynatron A47

CPU Support

AMD® Ryzen

CPU Socket

AM4/AM5

Screw Type #6-32

Installation Torque 6-10 in-lb

Solution 2U Server and Up

Dimensions 107 x 78 x 67 mm

Weight 400 g

Material 4 Heat pipes and Aluminum Stacked Fin

Fan Dimension 60 x 60 x 25 mm

Speed

• At Duty Cycle 20%: 2300±200 RPM
• At Duty Cycle 50%: 5400±10% RPM
• At Duty Cycle 100%: 11000±10% RPM

Bearing

Double-Ball

Rated Voltage 12V

Power

• At Duty Cycle 20%: 0.84 W
• At Duty Cycle 50%: 2.76 W
• At Duty Cycle 100%: 18.0 W

Air Flow

• At Duty Cycle 20%: 11.91 CFM
• At Duty Cycle 50%: 28.38 CFM
• At Duty Cycle 100%: 58.31 CFM

Noise Level

• At Duty Cycle 20%: 25.8 dBA
• At Duty Cycle 50%: 44.4 dBA
• At Duty Cycle 100%: 59.8 dBA

Air Pressure

• At Duty Cycle 0~20%: 1.48 mm-H2O
• At Duty Cycle 50%: 7.54 mm-H2O
• At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out

Pin1- (-)

Pin2- (+)

Pin3- (Techometer/Signal output)

Pin4- (PWM)

Life – Continuous operating under normal temperature (40 °C or 104 °F) 70,000 Hours
