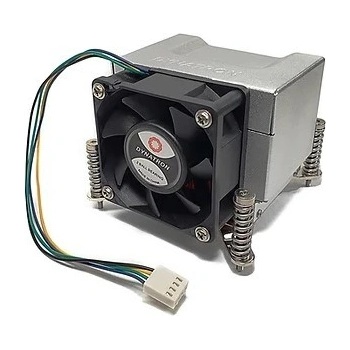

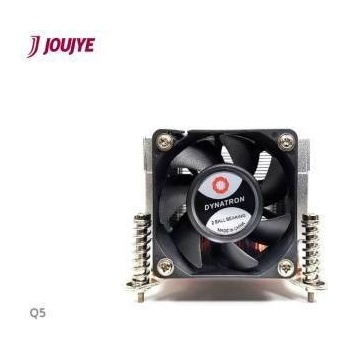

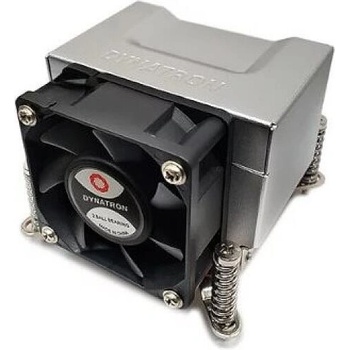

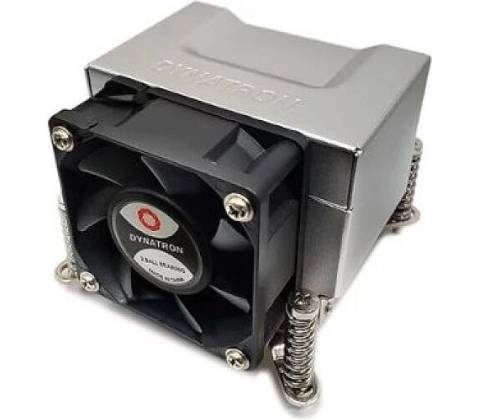

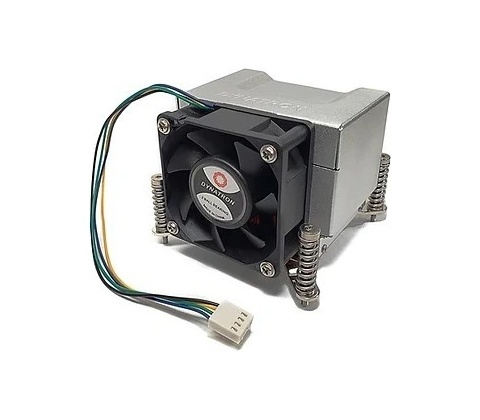

Dynatron Q5

 LGA 1700  Recommend for Intel® Alder Lake S Processor  Copper base & aluminum fins with heat pipe embedded  Up to TDP 125W

SPECIFICATIONS:

Application

CPU Socket

LGA 1700

CPU

Recommend for Intel® Alder Lake S Processor

Solution

Active Cooler for 2U Server & up

Technical Data

Overall dimension 90.7 x 85.0 x 65.1 mm

Weight 515.2g

Heat Sink

Material

Copper Base & Aluminum Fins with Heat Pipe embedded

Fan

Fan Dimension 60 x 60 x 25 mm

Speed

• At Duty Cycle 0~20%: 1600 ± 200 RPM
• At Duty Cycle 50%: 4000 ± 10% RPM
• At Duty Cycle 100%: 8000 Min RPM

Bearing 2 Ball Bearing

Rated Voltage 12 V

Power

• At Duty Cycle 0~20%: 1.20W
• At Duty Cycle 50%: 2.28W
• At Duty Cycle 100%: 7.2W

Air Flow

• At Duty Cycle 0~20%: 9.28 CFM
• At Duty Cycle 50%: 23.21 CFM
• At Duty Cycle 100%: 46.41 CFM

Noise Level

• At Duty Cycle 0~20%: 18 dBA
• At Duty Cycle 50%: 37.89 dBA
• At Duty Cycle 100%: 52.94 dBA

Static Pressure

• At Duty Cycle 0~20%: 0.76 mm-H2O
• At Duty Cycle 50%: 4.76 mm-H2O
• At Duty Cycle 100%: 19.04 mm-H2O

Lead Wire Pin Out

Pin1-Black (-)

Pin2-Yellow (+)

Pin3-Green (Tachometer/Signal output)

Pin4-Blue (PWM)

Thermal grease

Pre-printed
